Integration Steps

There are several mandatory steps to successfully integrate your solution with fiskaltrust.Middleware. These steps include:

  • CashBox Configuration
  • Middleware Launcher usage
  • Middleware Communication testing

The following steps describe how to configure and test the integration of ft.Middleware with your POS system.

1. CashBox Configuration​

1.1 Overview​

As a POS creator, your first goal is to send requests from your POS system to our free ft.Middleware and test the integration. The following sections summarize the CashBox configuration and its components, which are required to achieve this goal.

note

All steps in this document are intended for testing purposes and should be performed in the Sandbox environment of the fiskaltrust Portal, unless otherwise specified.

1.2 CashBox​

A CashBox is a configuration container that connects (links) the configurations of individual components of the fiskaltrust.Middleware which can be configured in the fiskaltrust.Portal. The fiskaltrust.Portal can contain the configurations of Queues, SCUs, and various Helpers. A CashBox links them together to form a complete Middleware configuration.

In the next steps, an SCU and a Queue will be created for testing purposes and connected via a CashBox.

Diagram: POS system connects via IPOS to a CashBox containing a Queue and an SCU, which signs through a smart card, USB or cloud SSCD

Figure 1. Diagram of a CashBox linking the Queue and SCU configurations of the fiskaltrust.Middleware.

The steps for the creation and configuration of the CashBox are described in the 1.5 CashBox creation section.

1.3 Configuration of the SCU​

The SCU (Signature Creation Unit) is a component of the ft.Middleware responsible for the communication with the TSE. The configuration of an SCU depends on the specific TSE you intend to use.

To create an SCU configuration in the fiskaltrust.Portal, select the menu item Configuration / Signature creation unit and click "Create". Enter a short description (name) for the SCU, then select the package for your TSE under "Package Name". Next, choose the latest version under "Package Version" and select the appropriate "Outlet". Click "Save" to create the SCU configuration.

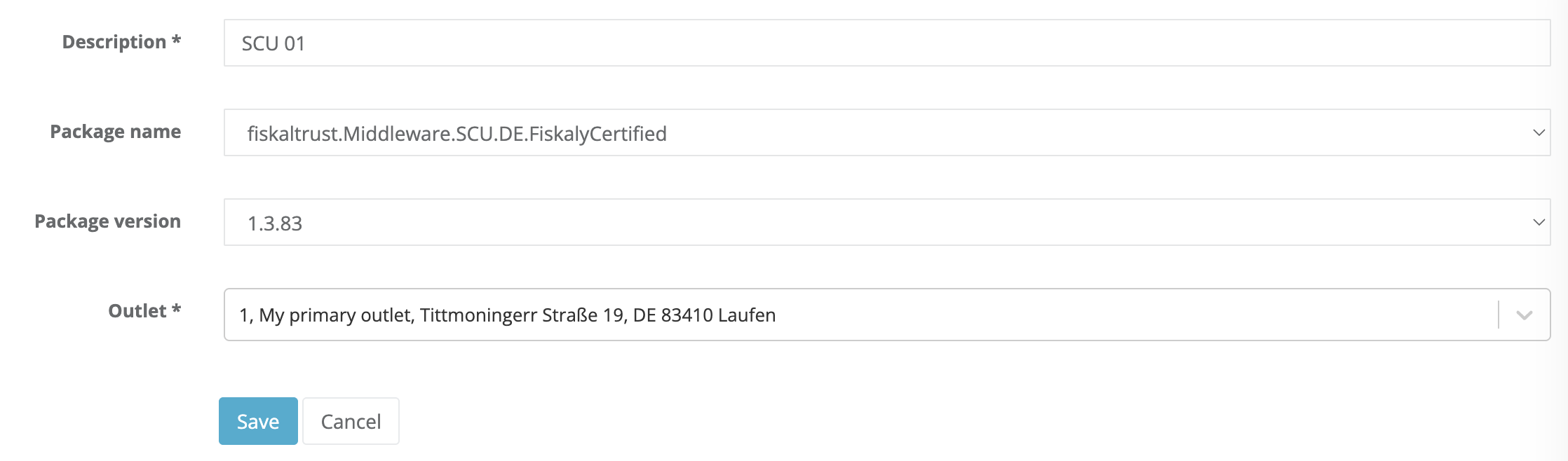

Portal SCU creation form with Description, Package name, Package version and Outlet fields and the Save button

Figure 2. Creating a Signature Creation Unit configuration in the fiskaltrust.Portal.

After saving, additional configuration information are required. These depend on the selected TSE package. Typically, you define how the SCU connects to the TSE, as well as the endpoint through which the Queue communicates with the SCU.

In the upper section of the form, you can configure how the SCU connects to the selected TSE. The available fields depend on the chosen TSE type:

  • Cryptovision - Enter the device path (drive letter followed by a colon) where the TSE is connected, for example E:.
  • Swissbit - Enter the device path (drive letter followed by a colon) where the TSE is connected, for example E:.
  • Diebold - Nixdorf - Enter the COM port to which the TSE is connected, for example COM6.
  • Epson - Under revision.
  • fiskaly Cloud-TSE - Enter the TSS ID, API key and the "Secret" key. One can obtain them for testing purposes from the official fiskaly website and fiskaly dashboard. Alternatively, you can purchase a free trial fiskaly Cloud-TSE in the sandbox fiskaltrust.Portal shop. This will automatically create an SCU with the corresponding data.
note

Select the outlet in the shop before you add the fiskaly Cloud-TSE test to your shopping cart (via the outlet dropdown in the upper area).

To specify the communication endpoint for the SCU, select, for example, the "gRPC" by pressing the corresponding button in the lower part of the form . The input field is filled automatically and can be edited if necessary. For the purposes of this guide, the automatically filled gRPC endpoint is sufficient.

SCU endpoint field filled with grpc://localhost:1401 next to the gRPC, http (REST), http (SOAP) and net.pipe (SOAP) buttons

Figure 3. Configuring the SCU communication endpoint in the fiskaltrust.Portal.

Save the configuration of your SCU after entering the required data. In the next step, we will configure the Queue.

1.4 Configuration of the Queue​

The Queue is a component of the fiskaltrust.Middleware that collects the received data from the POS system and is responsible for creating the request chain. It is the component of the fiskaltrust.Middleware with which your POS system communicates. You send your data to it and receive signatures (and other data) in return.

Under the menu item Configuration / Queue, click the "Add" button to create a new Queue. This opens the input form. Enter a short description (name) and the CashBoxIdentification. The CashBoxIdentification is later used by the SCU as clientID for the TSE. It must therefore be a unique value, formatted as a "printable string" with a maximum length of 20 characters.

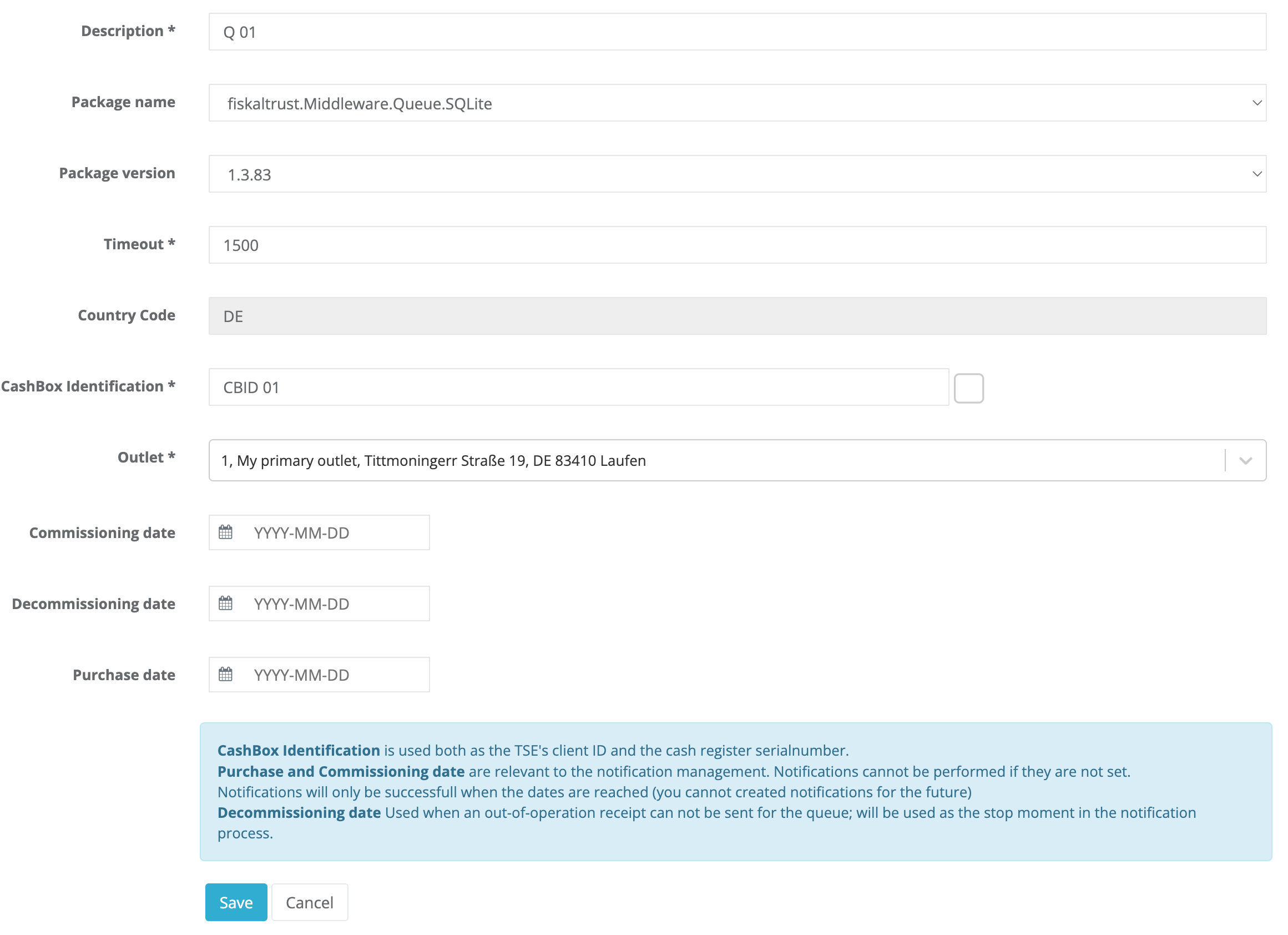

Portal Queue creation form with Description, Package name, Timeout, CashBox Identification, Outlet and date fields

Figure 4. Creating a Queue configuration in the fiskaltrust.Portal.

After saving, a form appears where you can specify the communication endpoint. This endpoint will later be used for communication with the Queue. For our example, we will choose http(REST) by clicking the corresponding button.

Queue endpoint field filled with a rest://localhost:1500 URL after clicking the http (REST) button

Figure 5. Selecting the Queue communication endpoint in the fiskaltrust.Portal.

Once saved, the Queue configuration is complete. In the next step, we will create the CashBox (our configuration container).

1.5 CashBox creation​

Under the menu item Configuration / CashBox,click the "Add" button to create a new CashBox. This opens the input form. After entering a short description (name), click "Save". The CashBox is now created and appears in the list.

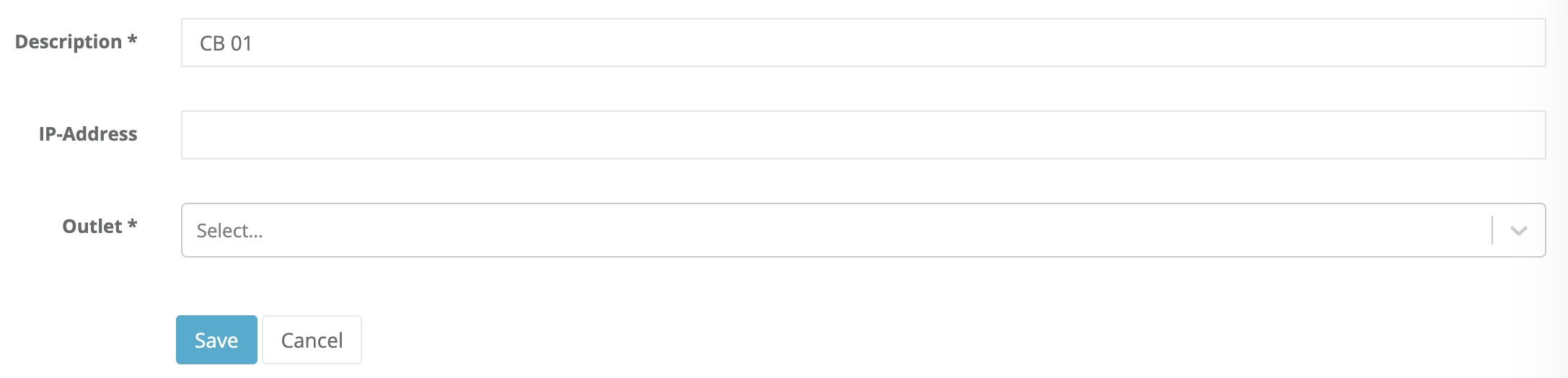

Portal CashBox creation form with Description, IP-Address and Outlet fields and the Save button

Figure 6. Creating a CashBox configuration container in the fiskaltrust.Portal.

1.5.1 Connecting CashBox with Queue and SCU​

Next, we will add the configuration of the Queue and SCU to the created CashBox and connect them. To do this, click the button with the list icon assigned to the CashBox.

List icon button that opens the CashBox configuration

Figure 7. List icon button used to open the CashBox configuration.

Select the previously created Queue and SCU using the corresponding checkboxes, then click "Save". After saving, we will connect the Queue with the SCU. To do this, expand the list entry of the new CashBox in the overview of the CashBoxes. The detail area shows the contained configurations. Two buttons are assigned to the Queue configuration on the right side. Click the first button (box-and-arrow icon) to assign the new SCU to the Queue.

Box-and-arrow icon button for assigning the SCU to the Queue

Figure 8. Box-and-arrow icon button used to assign the SCU to the Queue.

A popup appears where you can select the SCU. After assigning and saving, the CashBox configuration is complete.

SCU assignment popup with SCU 01 selected and the Save and close, Save and Cancel buttons

Figure 9. Popup for assigning the SCU to the Queue in the fiskaltrust.Portal.

2. Middleware Launcher​

The ft.Middleware Launcher starts the required services on the local machine and exposes the endpoint configured for the Queue for the communication with your POS system.

2.1 Downloading the launcher​

Before downloading the launcher, it is important to "rebuild" the CashBox. To do this, click the "Rebuild configuration" button (first grey button with the reload icon) in the CashBox line. This action must be repeated whenever the CashBox configuration or any of its components is changed..

Grey Rebuild configuration button with the reload icon

Figure 10. Rebuild configuration button in the CashBox line.

After rebuild, you can now download the launcher by clicking the "Download" button.

Orange Download button for the Launcher

Figure 11. Download button for the Middleware Launcher.

2.2 Enabling debug mode​

Note

The debug mode is not available in launcher version 1.2. For AT queues, a debug launcher is available, but it only provides additional logging for AT-specific scenarios.

After the download is complete, you will receive a ZIP file containing the launcher, its corresponding configuration, and other required files. Extract the ZIP file and open the extracted folder. Locate the test.cmd fileand open it in a text editor of your choice. Add the argument -verbosity=Debug at the end of the second line (which starts with fiskaltrust.exe). This enables more detailed logging output.Save and close the test.cmd file.

2.3 Starting the launcher​

The launcher must be started in Administrator mode. To do this, right-click the test.cmd file and select "Run as Administrator". A terminal window will open where you can follow the start of the local middleware via log messages. This window remains open, as it displays log messages for further progress. Do not click inside the terminal window, as this may pause the service (Windows feature). If this happens accidentally, click the window again and press "Enter" to cancel the interruption.

Known issues / recommendations:

  • To avoid folder access issues during startup, extract the files to a "neutral" directory, e.g. C:\Launcher\. Running it from user-specific folders may result in Access denied errors.
  • To avoid system permission issues when starting the Launcher, start a command prompt as Administrator, navigate to the folder containing Launcher's files, and start it from there.
  • If the launcher fails because the port is already in use, you may need to change the Queue endpoint port. In that case, rebuild the CashBox, download the launcher again, and retry. If the issue persists, a system restart may help.

3. Middleware Communication​

3.1 Initialization with an initial operation receipt​

After starting the launcher, the local middleware is available. The next step is to initialize it using an initial operation receipt. You can send it with any HTTP client (for example curl or your POS system's own implementation) to the REST endpoint of the Queue.

3.1.1 Determine the endpoint and CashBox ID​

Two values are needed to send requests to the previously started local Middleware:

  • Endpoint URL - The URL of the previously created http(REST) endpoint of the Queue. You can find the required value in the fiskaltrust.Portal under the menu item Configuration / Queue. Expand the detail area of the list entry of the Queue and copy the URL. For example, rest://localhost:1500/f84bf516-a17b-4432-afa6-8c1050e2854d. Replace rest:// with http:// in the URL to obtain the base URL of the Middleware. For example, http://localhost:1500/f84bf516-a17b-4432-afa6-8c1050e2854d. The individual functions are available below this base URL. For more information, see Communication.
  • CashBox ID - The ID of the configuration container (not to be confused with the CashBoxIdentification). You can find this value in the fiskaltrust.Portal under the menu item Configuration / CashBox. Expand the detail area of the list entry of the CashBox and copy the value of CashBoxId. For example, 90682627-f707-45ab-84df-f855118bba97. It is sent as ftCashBoxID in the request body.

3.1.2 Send a request with the initial operation receipt​

Send a sign request with the initial operation receipt to the local Middleware. For more information on this receipt in the German market, see Start Receipt (Initial Receipt). The ftReceiptCase value and the properties it requires are listed in Type of Receipt: ftReceiptCase, and the request fields in ReceiptRequest. The response is returned to your client, and you can view the corresponding log messages in the terminal. The ft.SecurityMechanism of the Middleware and the TSE are now initialized and ready to process further requests.

3.2 Sending further requests​

3.2.1 Compliance Middleware documentation​

The Compliance Middleware is described in the Middleware documentation. It contains important information about communication with the Middleware.

The Middleware documentation includes a general section and country-specific sections that extend the general specification with localized requirements.

It is important to review this documentation before continuing with further steps.

After familiarizing yourself with the Compliance Middleware documentation, we also recommend watching our Middleware webinar video, which explains typical requests in detail and provides additional context.
