Configuring the Local PosSystem API Helper with Launcher 2.0

caution

The LocalPosSystemApi Helper is currently in preview.

summary

After reading this, you can set up and configure the LocalPosSystemApi Helper within a Launcher 2.0 deployment.

Introduction

The LocalPosSystemApi Helper is a Middleware component that exposes a local endpoint through which the POS System communicates with the fiskaltrust Middleware. It acts as a bridge between the POS System and the underlying Queue.

caution

The LocalPosSystemApi Helper must be part of the same CashBox as the Queue it is intended to serve.

caution

As the LocalPosSystemApi Helper is currently only supported on the Launcher 2.0 this setup does not work for France. Refer to the guide on how to setup the LocalPosSystemApi helper for the Middleware 1.2.

If you're interested in running this in Austria reach out to us as the launcher 2.0 is not enabled per default there.

Add a LocalPosSystemApi Helper

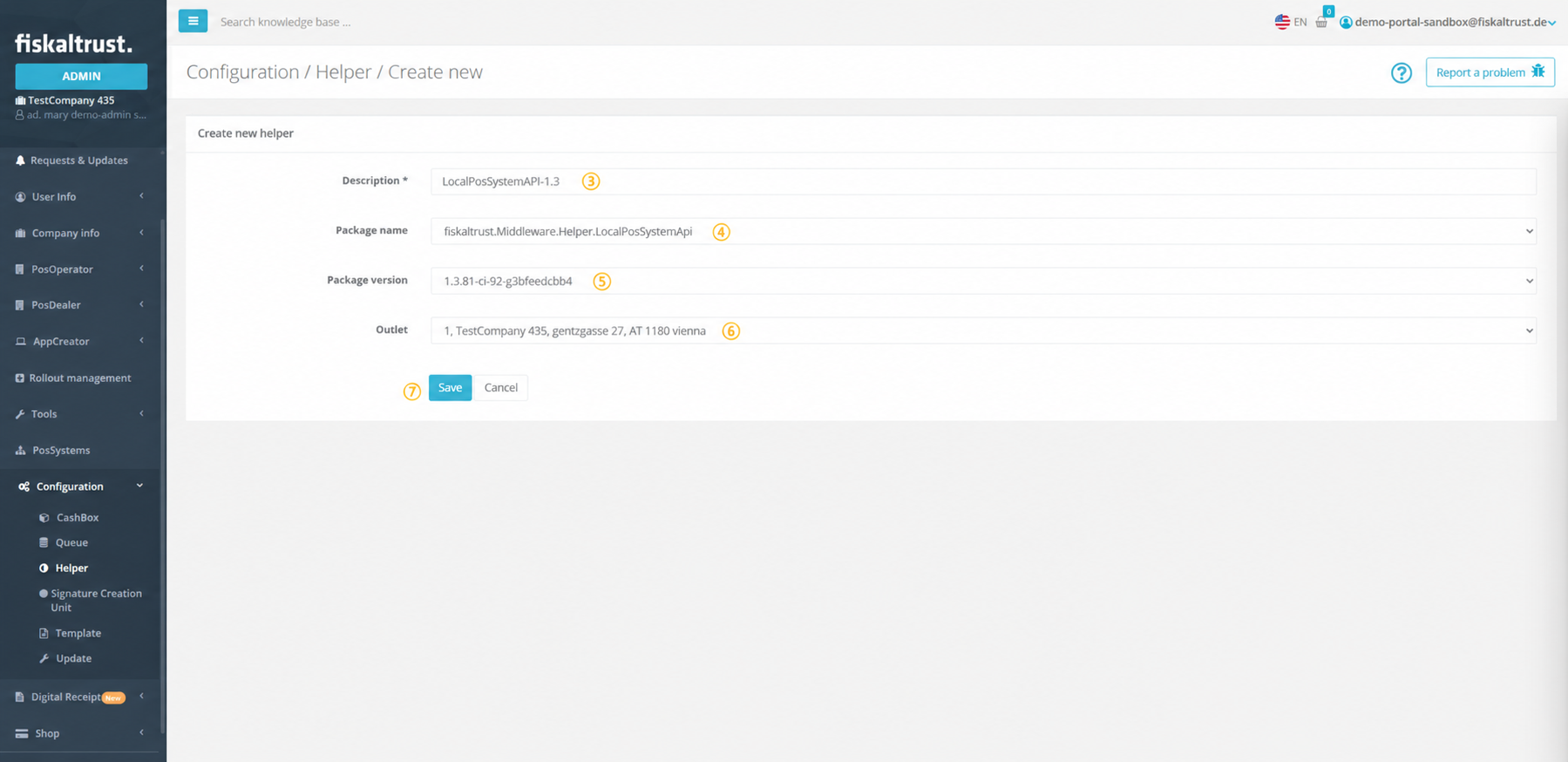

To add the LocalPosSystemApi Helper, navigate to Configuration / Helper in the fiskaltrust Portal and follow the steps below. Note that the following figures and steps are exemplary.

Steps	Description
	Navigate to Configuration/ Helper to get to the Helper configuration.
	Click +Add to create a new Helper.
	Add or edit a name for your Helper at Description.
	Select fiskaltrust.Middleware.Helper.LocalPosSystemApi from the Package name drop-down list. Note that this selection cannot be changed later.
	Select the latest Package version using the drop-down list.
	You can select one of the available outlets with the drop-down list.
	Click Save to save your changes.

After the Helper has been saved, a success notification confirms that it has been created. The configuration window for the new Helper then opens automatically, allowing you to proceed with the configuration.

Configure a LocalPosSystemApi Helper

Steps	Description
	Click http to generate a URL that the POS system can use to access the Helper. You can also rename the URL if desired.
	Click Save to save your changes and return to Configuration/ Helper.

Use a LocalPosSystemApi Helper

Steps	Description
	Navigate to Configuration / CashBox and search for the desired CashBox.
	Click Edit to open the CashBox configuration.

Steps	Description

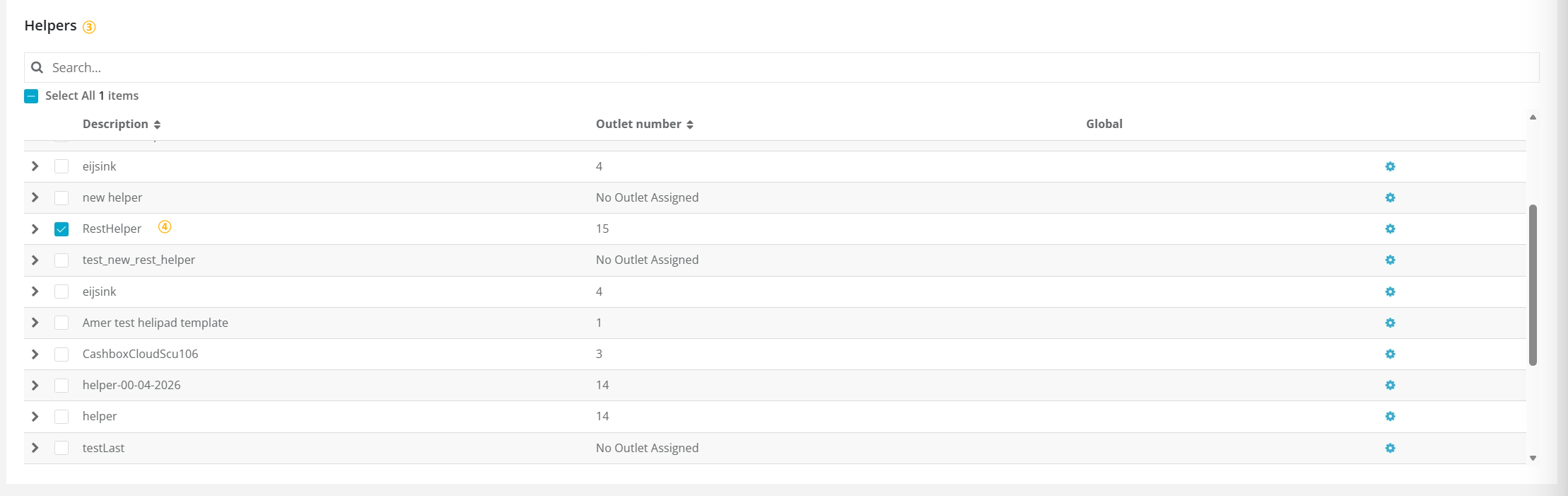

	Scroll down to the Helpers section and locate the LocalPosSystemApi Helper.
	Activate the Helper by selecting its checkbox.

info

The same LocalPosSystemApi Helper can be used in multiple cashboxes.

Steps	Description
	Scroll back to the top of the page.
	Click Save to sabe your configuration.

Download Launcher

caution

The minimum required Launcher version is 2.0.0-rc.25. When downloading a launcher the latest version is downloaded automatically.

Steps	Description
	Return to the Configuration / CashBox page. You should see the Helper URL configured in the previous step.
	Click Rebuild configuration and wait for the success confirmation.
	Click Download and select the appropriate Version 2 Launcher architecture for your system.

Deploy the CashBox

Once the Launcher package is downloaded, extract it and run launcher-test.cmd (or launcher-test.sh on unix based systems) to start the Middleware. For detailed instructions on starting the Launcher and installing it as a service, see Launcher 2.0 Getting Started.

Test the LocalPosSystemApi Helper

Once the Middleware is running, verify that the LocalPosSystemApi Helper is working correctly by sending a test request. The easiest way to do this is by using the fiskaltrust Developer Portal, which provides an interactive interface for sending requests to the Middleware and inspecting the responses.

Select POS System API from the available options.

Select your market.

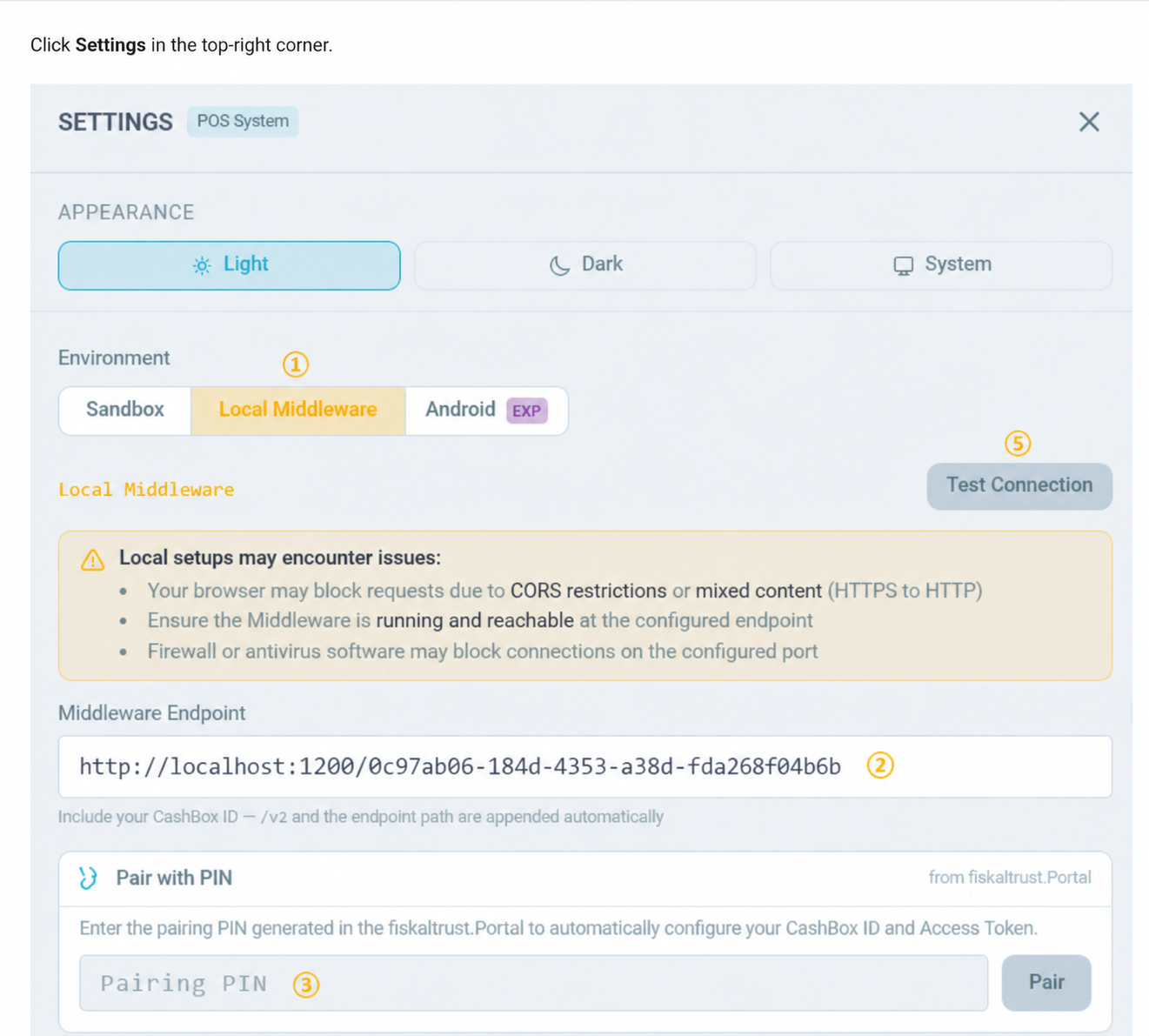

Click Settings in the top-right corner.

Steps	Description
	In the Environment section, select Local Middleware.
	In the Middleware Endpoint field, enter the Helper URL found on the Configuration / CashBox page.
	Copy the PIN from the Configuration / CashBox page, enter it in the field below, then click Pair. A confirmation message should appear as shown below.

Steps	Description
	The CashBox ID and Access Token fields are populated automatically.
	Click Test Connection — a green 201 response confirms that the Helper is working correctly.

Close Settings. You can now use the available endpoints to send requests to the Middleware and verify the Helper functionality.
